Flexible Extendable Cantilever Racking System For Vertical Warehouse Storage

Flexible Extendable Cantilever Racking System For Vertical Warehouse Storage

In Stock

SKU: IR-00058-CA
Availability: Available
Categorie: Cantilever Racking System

Description

Product Description

Light Duty Cantilever Rack System For Lighter Load of Vertical Warehouse Storage

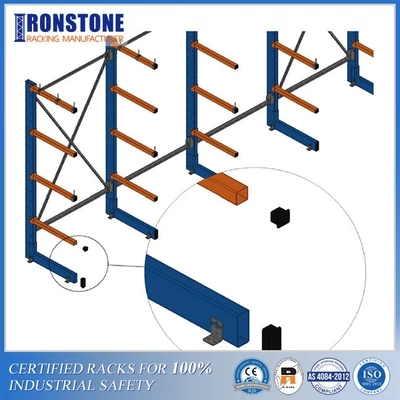

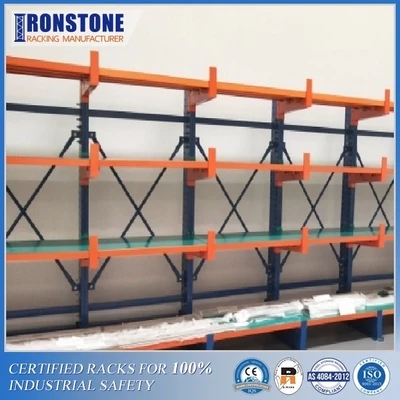

Cantilever rack is a very typical storage system suitable for long and large-size products including steel bars, metal tubes, wooden decks, automobiles, furniture and so on. Though most industrial warehouses demand medium-duty and heavy-duty storage, light-duty cantilever rack is also necessary for light weight items storage and exhibition. Engineered with roll-formed C profile steels, light duty rack is affordable without too much pressure on material strength and loading weight.

Specifications of cantilever rack

Name	Light duty Cantilever Rack	Material	Roll formed Steel
Upright height	2m~5m	Color	Optional as needs
Base type	Single-sided or double-sided	Weight Capacity	100~500kg
Bay width	Customized	Arm length	0.5~1.2m
Arm types	Inclined arms or straight arms with stop pins
Storage layers	Customized quantity, arms can be adjusted along the uprights with certain pitches
Certification	RMI/ISO/AS4084-2012
Connection	Bases are bolted to the vertical columns
Finish	Powder coating, hot dip galvanized
Application	Long product storage both in-door and out-door
