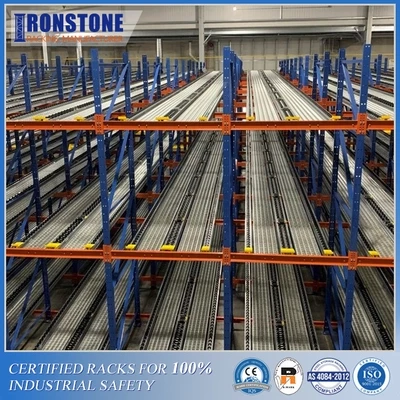

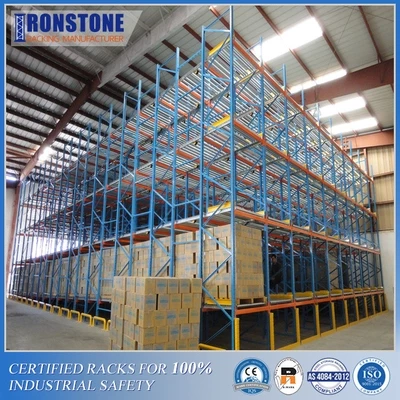

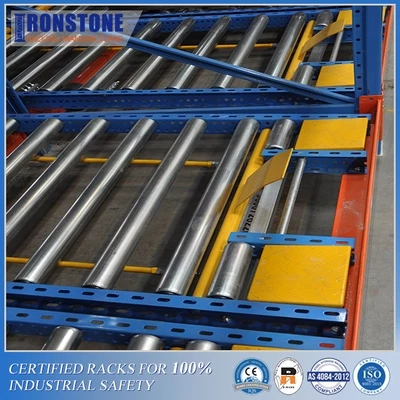

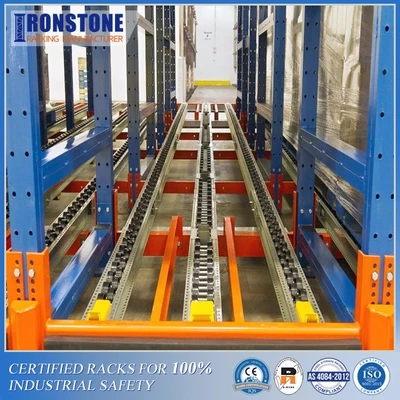

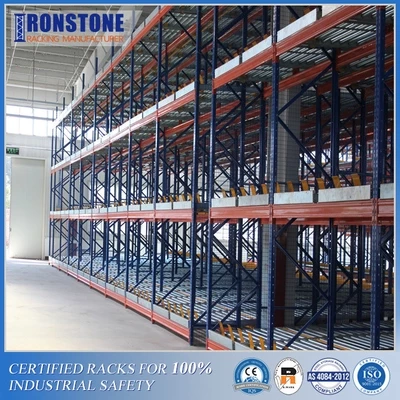

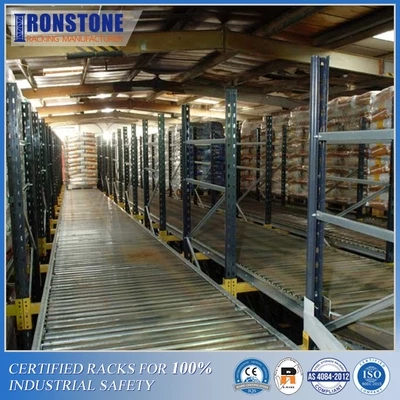

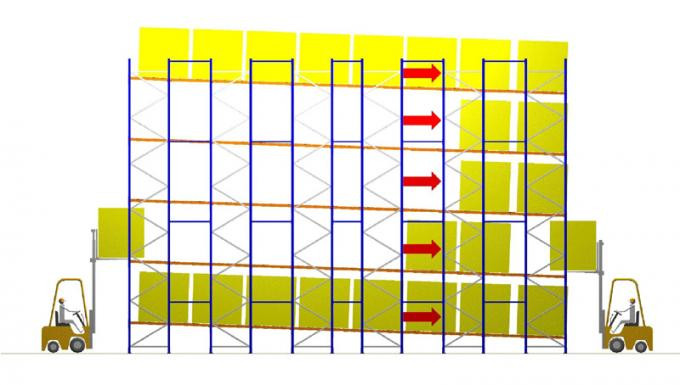

Pallet flow rack is one important application of gravity flow system in storage industry. Exploiting sloped rollers in a row, pallets loads can move automatically from vantage point to lower end at a controlled speed with FIFO(first-in/first-out) principle. Having fully stocked picking face, pallet loads flow into aisle position one by one gently and safely.
Pallet Flow Rack Specification
| Product Name | Pallet flow racking |
| Material | Cold-rolled Steel |
| Upright Section | 80*60, 90*60, 90*70, 100*70,120*95 |
| Beam Section | 80*50/100*50mm |
| Product size |
Customized:Height:3000/4200/4500/4800/5025/6000/7500/11000mm Length:2100/3150/4200/5250/6300/7350mm Depth:1350mm |
| Thickness | Upright:2.0/2.5mm
Beam:2.0/2.5mm
|
| Load Capacity | 1000/1500kg per pallet load |
| Layer | 2-6 Adjustable layers, customized) |
| Color |
Upright:Blue, Beam:Orange, Customtized color |
| Surface finish | Powder Coated |
