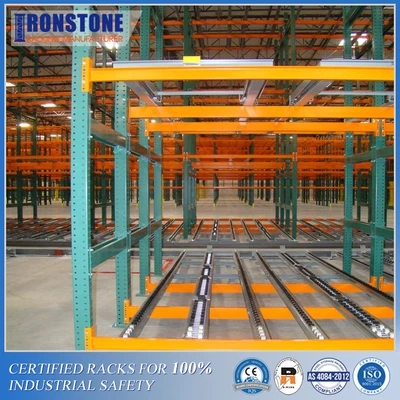

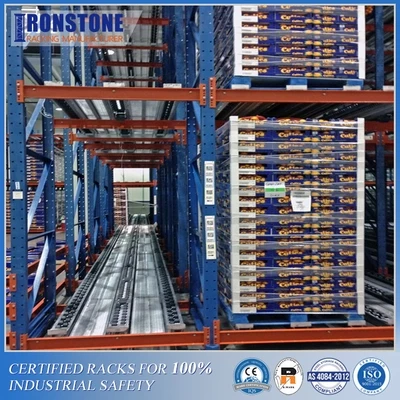

Heavy-Duty Gravity Pallet Flow Racking System for High-Density Storage
The system of pallet flow racks is similar to the system of push-back racks, and the difference between them is that rails and carts are replaced by roller channels. The roller channels are inclined so that pallets with cargoes are able to slide from the higher end to the lower end by gravity. Moreover, there are damping sets among the rollers, controlling the speed of sliding so as not to damage the cargo. The approach of management is FIFO.
| Name | Pallet flow rack | Material | Steel |
| Shelf levels | 2~12 tiers per shelving unit | Color | Customized Gray/White/Black/Blue |
| Height | Customized 1500mm~5000mm |
Weight Capacity | 150~800kg per shelf |
| Width | Customized 1000mm~2700mm |
Depth | Customized 400mm~1200mm |
| Finish | Epoxy powder coated corrosion prevention | ||
| Usage | Cargoes/Boxes/Non-palletized product Storage | ||
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days according to the order quantity | ||
| Assembly & installation | Easy to assemble with detailed instruction | ||
